SlabGasket Expansion Joint Replacement Free Sample Pack
[SG310]

Available SlabGasket Colors: Gray or Almond

SlabGasket™ is sold "By-The-Foot". QUANTITY = FEET.

How to select the correct size:
Use the width to select the proper fitting SlabGasket size. The height (tall) of each size is provided below only so that you can insure you have sufficient depth. Properly fitted SlabGasket will stay in place as set; SlabGasket does not need to extend the full depth of the expansion joint.

SlabGasket Sizes
Regular Heights:
1/2” width x 2 1/8” tall
5/8” width x 1 3/8” tall
3/4” width x 1 5/8” tall
7/8” width x 1 7/8” tall (replaces rotted 1x3 or 1x4)
1” width x 1 1/8” tall
1 1/8” width x 1 1/4” tall

The most common size is Regular height, 7/8” width x 1 7/8” tall.

SlabGasket Shorty Sizes
Shorty Heights:* [1:1 ratio]
1/2” width x 1 1/8” tall
3/4” width x 3/4” tall
7/8” width x 7/8” tall
1 5/8” width x 1 1/4” tall

* If you remove the rotted expansion joint and have less than 1 1/4” of depth, Shorty Height is usually the correct product to use.

SlabGasket XL Sizes
Regular Heights:
1 1/4” width x 1 1/2” tall
1 3/8” width x 1 1/4” tall
1 1/2” width x 1” tall
1 5/8” width x 2” tall
1 3/4” width x 1 1/4” tall
1 7/8” width x 1 1/4” tall
2” width x 1 1/4” tall

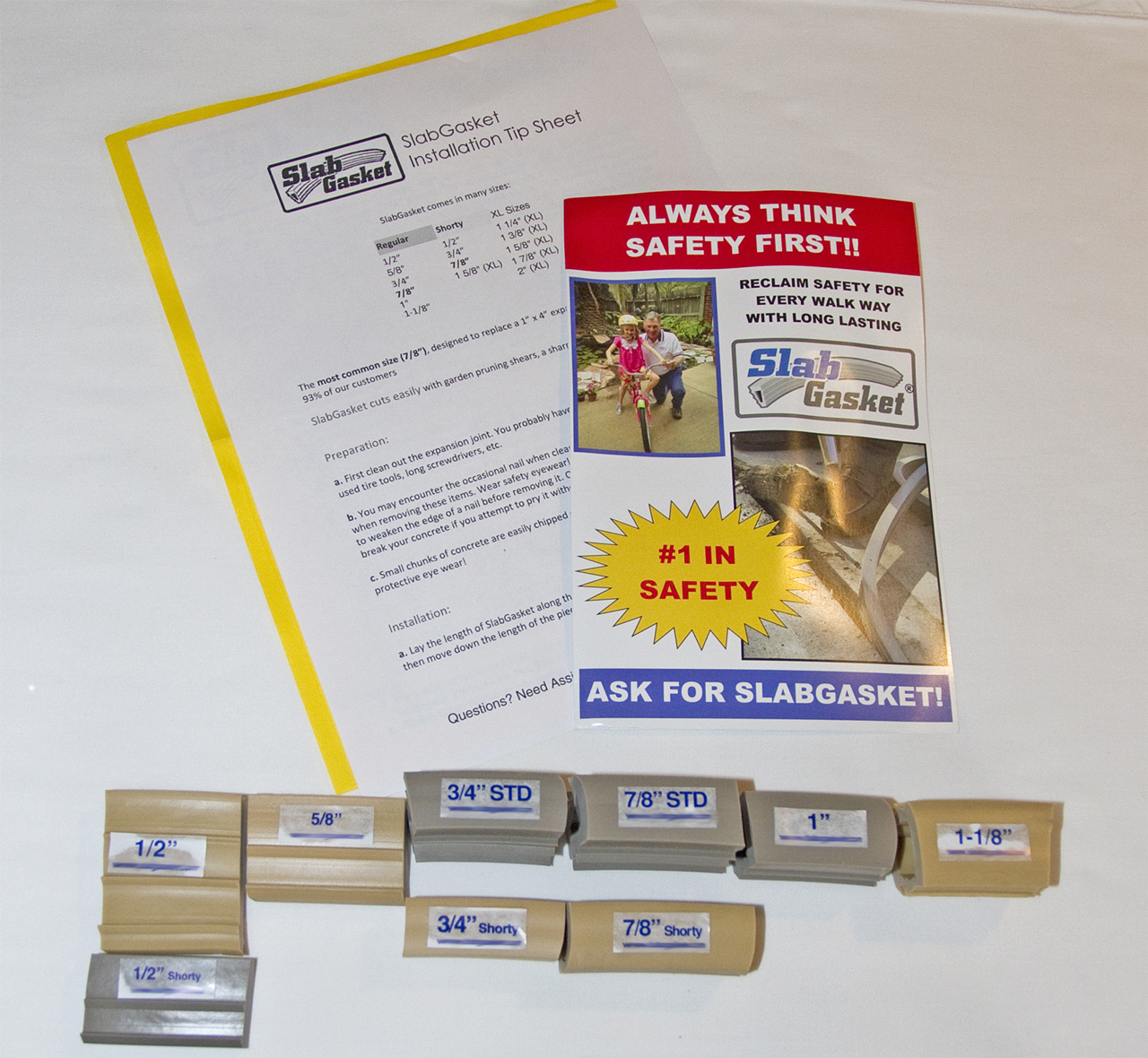

The Free Sample Pack will include both Gray and Almond color samples.

Note: All SlabGasket sizes have an open hollow core, except for regular height 1/2” width, which is solid core. The maximum coil length for all sizes is 50 feet.

View All Available Sizes of SlabGasket™ Expansion Joint Replacement.

SlabGasket Sample Packs are also available with the larger sizes (SlabGasket XL Sample Pack) for joints wider than 1 1/8” up to 2”.
